Air Panel & Rail Jig
Air Panel & Rail Jig 24

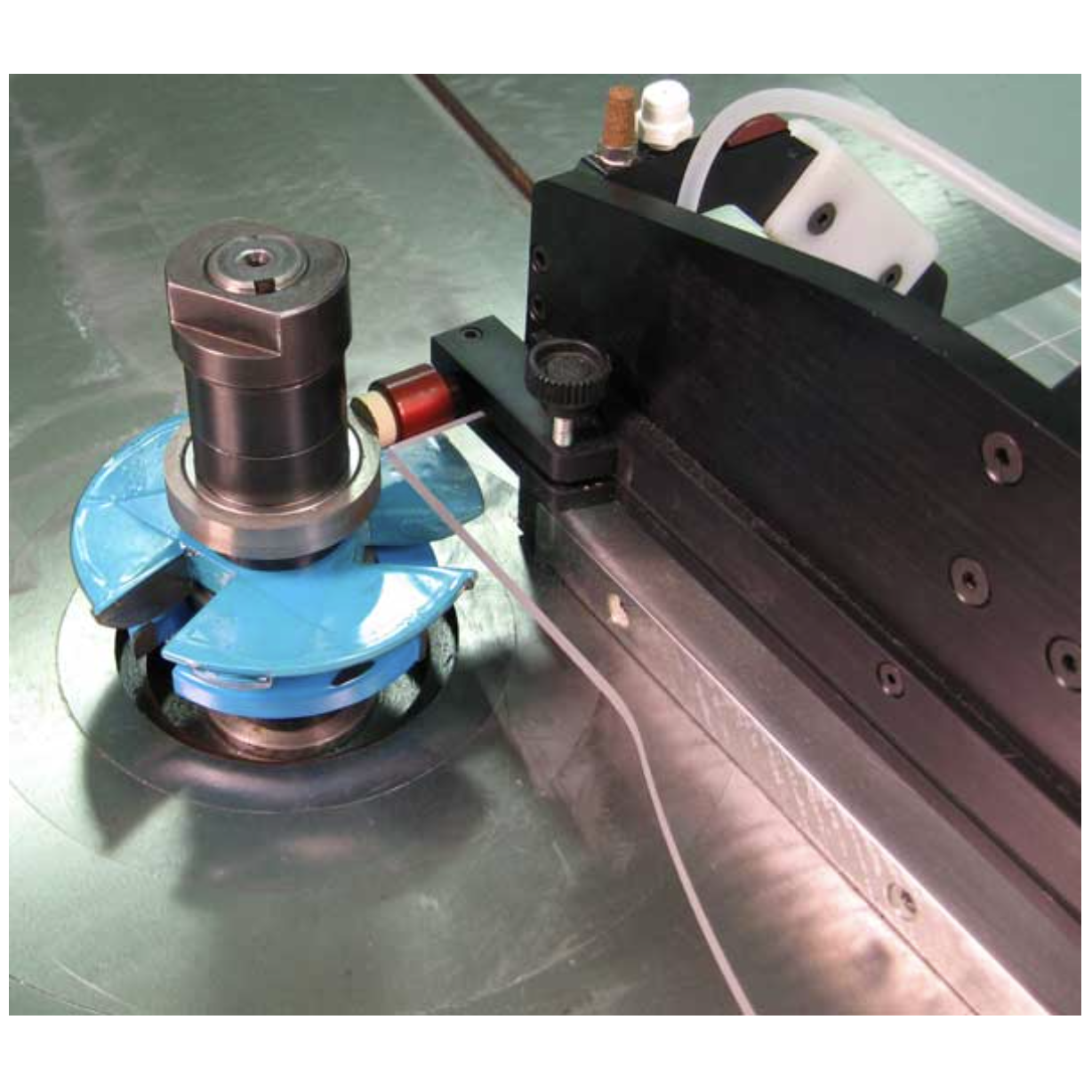

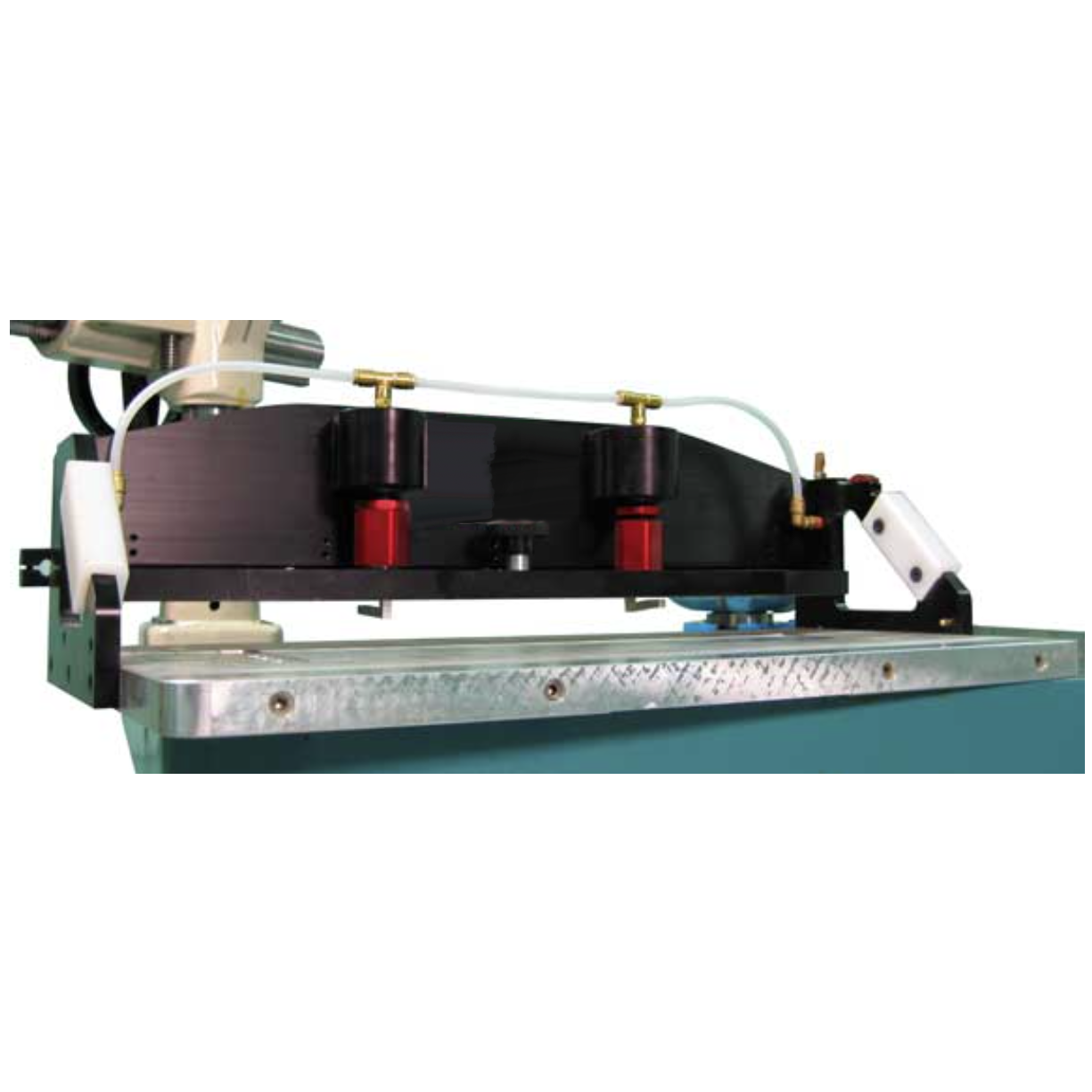

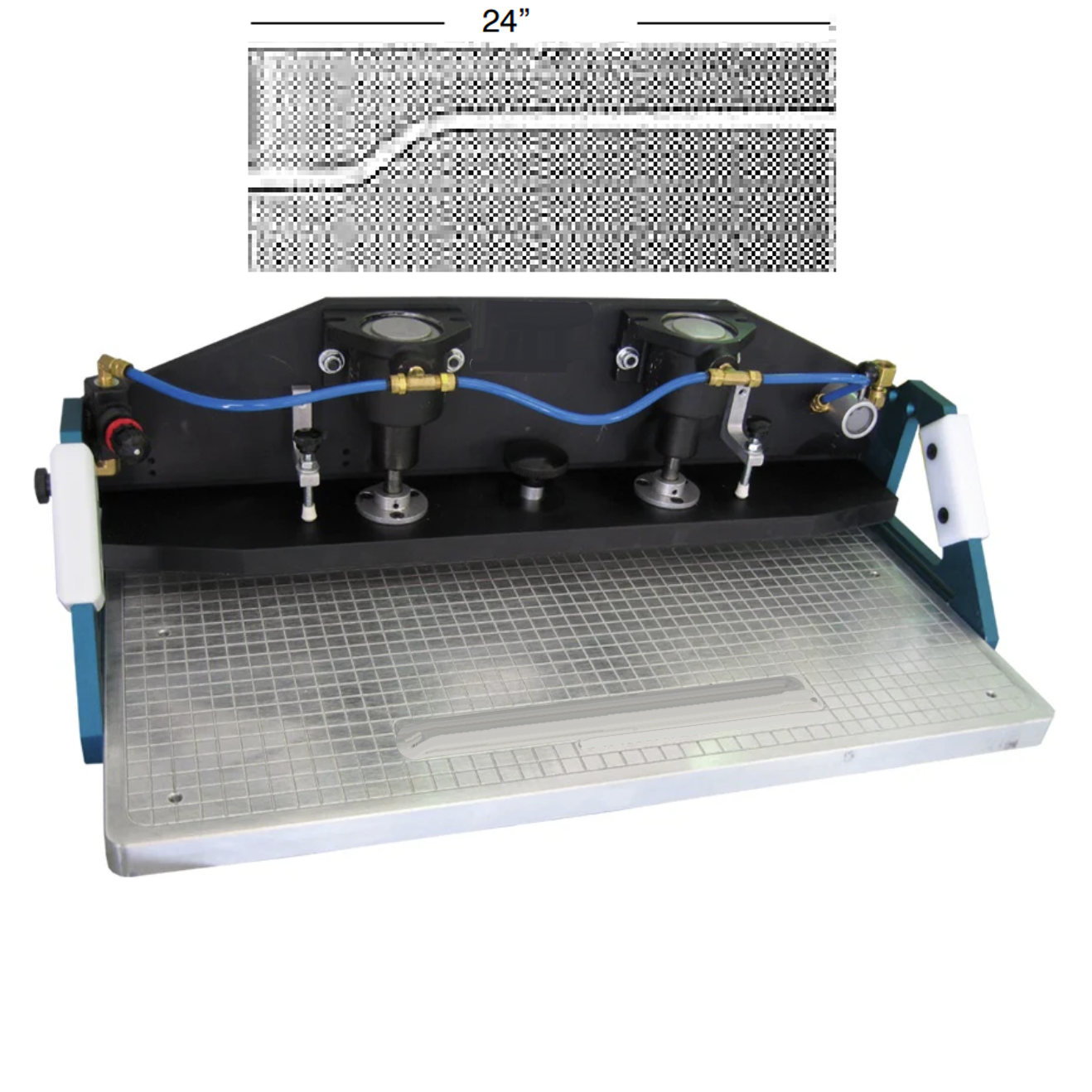

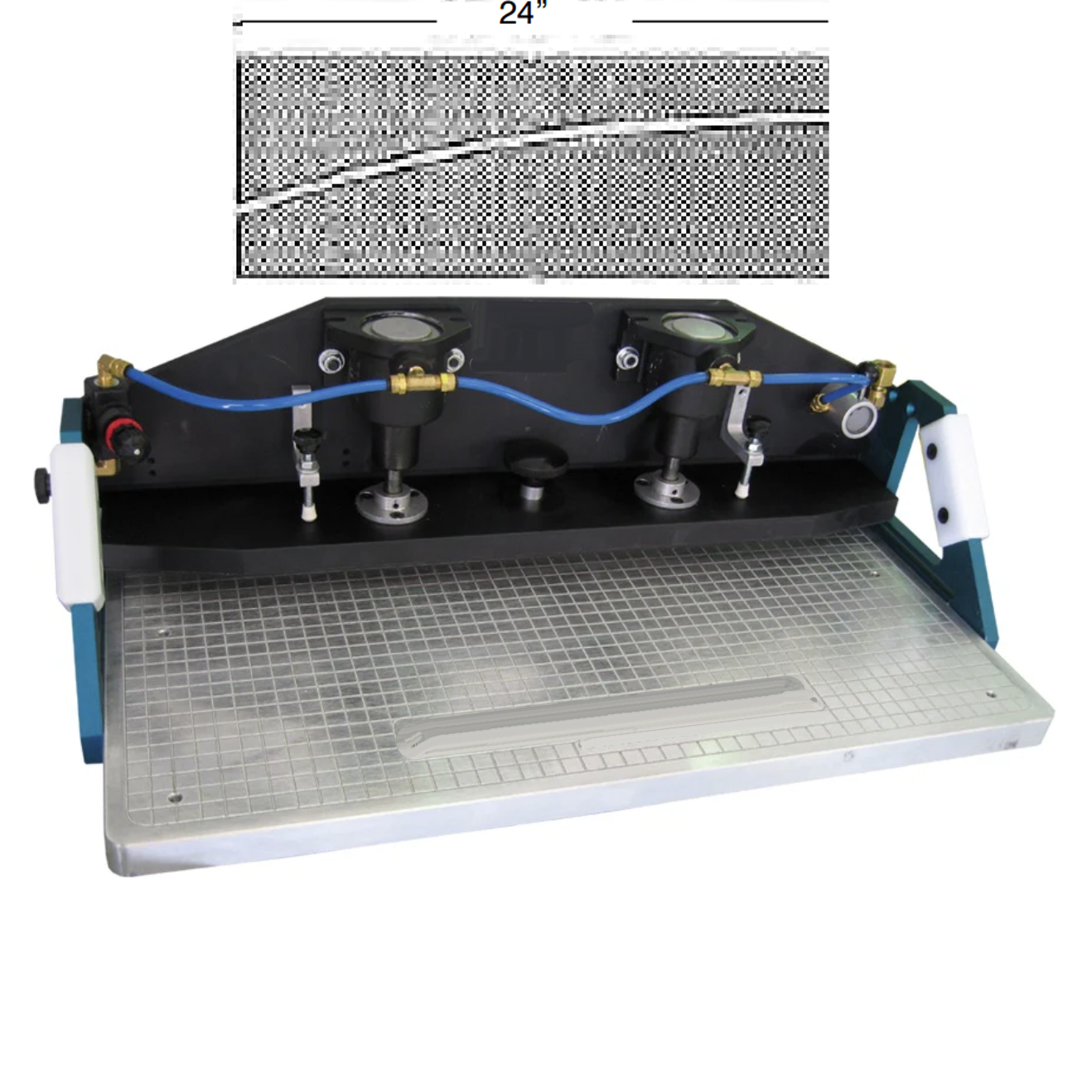

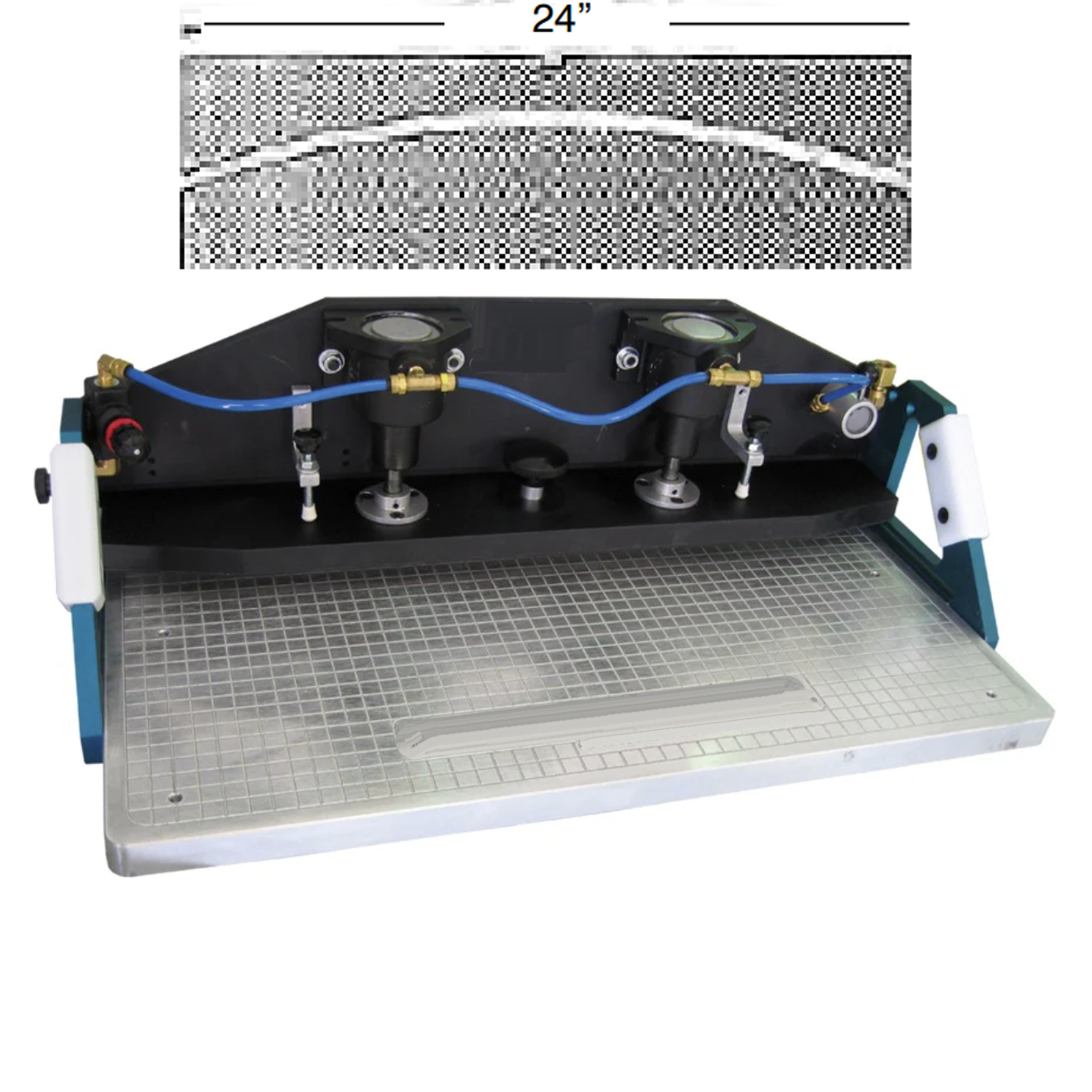

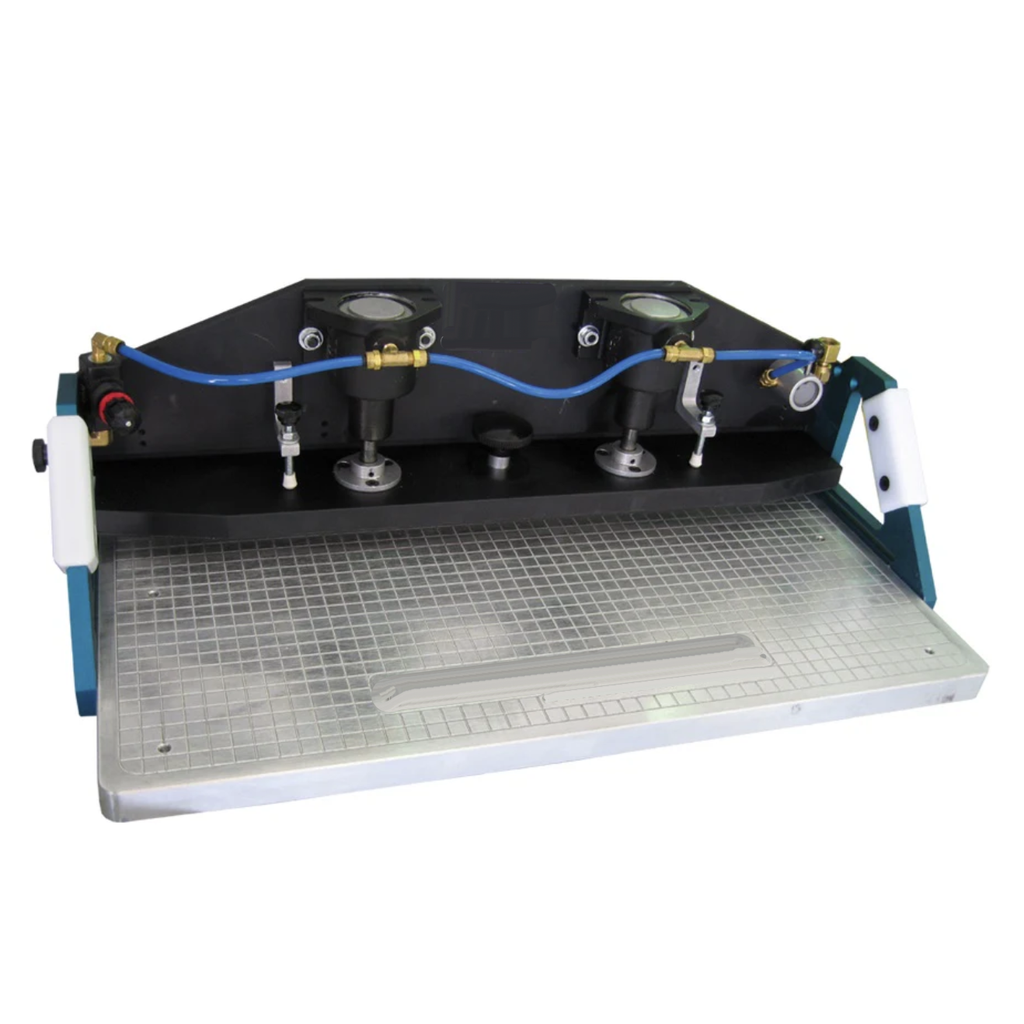

The Air Panel & Rail Jig 24 is a fast, safe, and efficient machine for arching panels and rails for doors. The Air Panel & Rail Jig 24 is specifically designed to shape both the arched rails and panels. It effortlessly floats on a cushion of air while securely holding the panel or rail with pneumatic clamps and wont slide off of the shaper table.
Features
– Effortlessly floats on a cushion of air.
– Single thumb action activates clamp and floatation

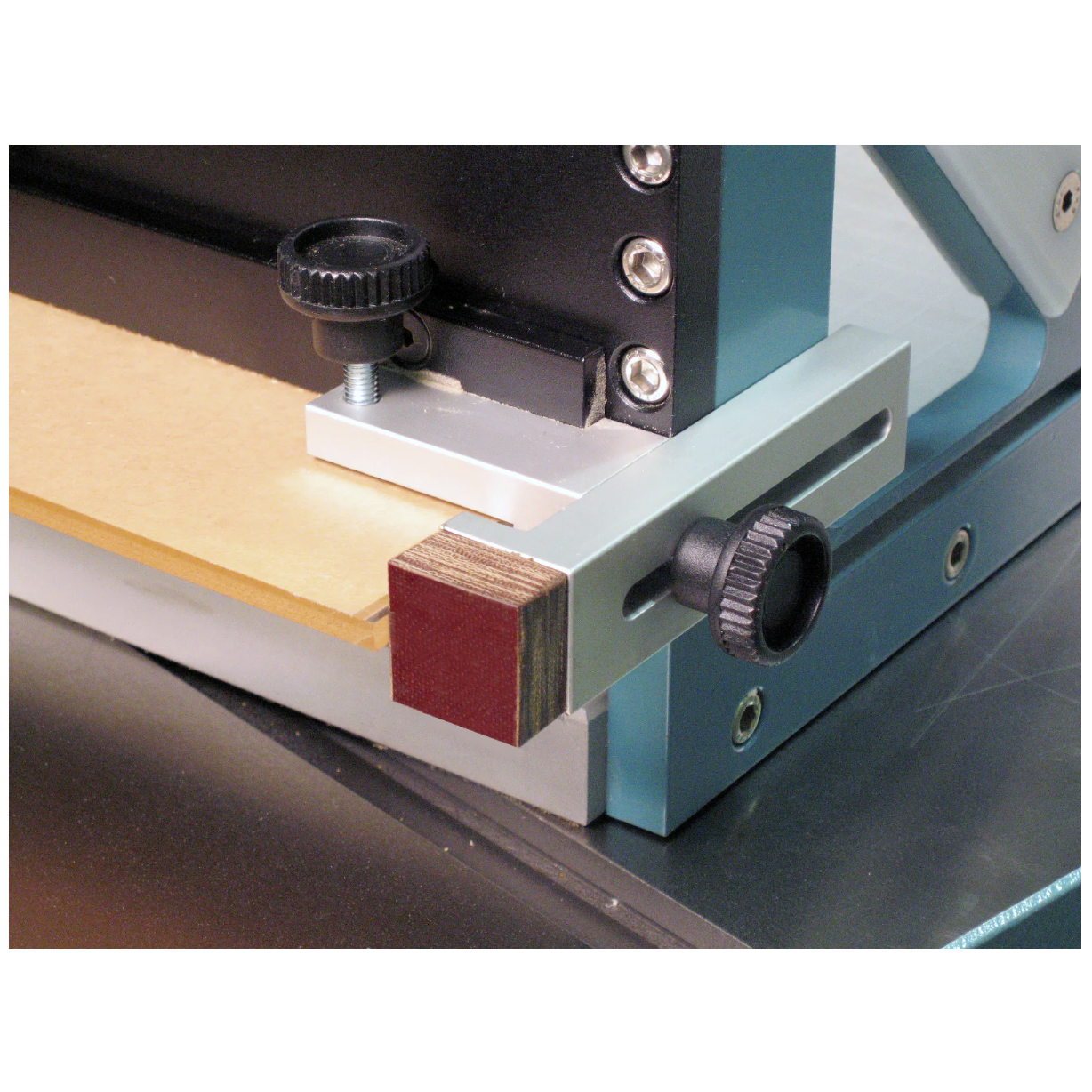

- Self centering mechanism.
– Single model 24″ width capacity
APR-24 Specifications
– Max Width: 24″
– Max Height: 2-1/4″
– Min. Height: 3/4″
– Air Requirement: 1CFM @ 85psi
– Holding Power: 800 ft/lbs
$2,799.00
